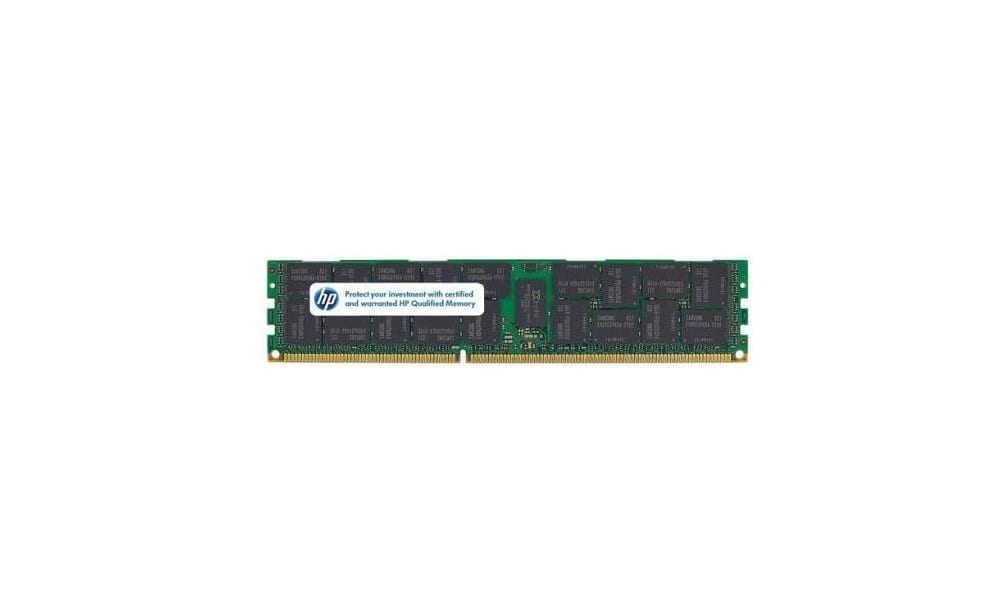

688963-001 HP 16GB DDR3 Registered ECC PC3-12800 Server Memory

Previous product
50G0050
50G0050 Lexmark MS820 MS821n Laser Printer $855
Next product
42CC160
42CC160 Lexmark C2535dw Laser Printer $449

$94

Close
Price Summary
  • $94
  • $94
  • $94
In Stock
Highlights:

688963-001 Overview

688963-001 . Is a DDR3 Module. DDR3 Modules run from 1066 to 1600 MT/s (million transfers per second) This module has a total capacity of 16GB. Has a Memory Bus Type of PC-12800. Uses ECC (Error Correcting Code), ideal when system failure must be avoided at all costs. Is also registered which makes it stable enough for server conditions. Has a data transfer rate of 1600 Mhz.

SKU: 688963-001 Categories: , Brand:
Description

688963-001 Technical Specifications

HP 16GB PC3-12800 DDR3-1600MHz ECC Registered CL11 240-Pin DIMM Dual Rank Memory Module

Specifications
Manufacturer HP
Manufacturer Part # 688963-001
Memory Type DDR3 SDRAM
Capacity 16GB
Data Transfer Rate 1600Mhz
Pins 240 Pin DIMM
Bus Type PC3-12800
Error Correction Registered ECC
Cycle Time 1.25ns
Cas CL11
Memory Clock 200Mhz
Rank Rank 2
Voltage 1.5
Platform Support: Server Memory
